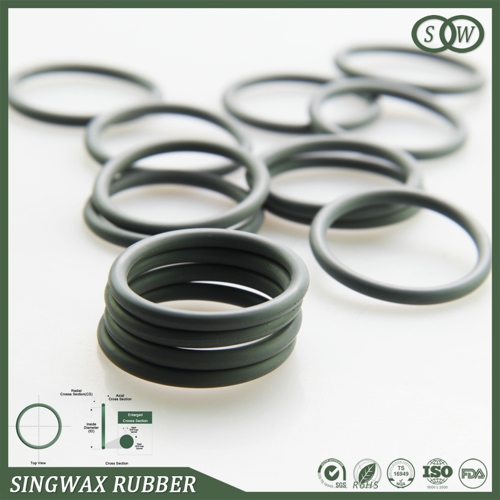

??Rubber O-ring standard presentation

??Rubber O-ring standard in accordance with the public's understanding include: American standard, European standard, Japanese standard, GB, As568O-ring standard, and a rubber O-ring according to industry standards, has the following standard tolerance, the inner diameter ID * Wire CS, millimeters.

??1, O-ring national standard, O-ring specifications, rubber O-ring standard ID

??The inner diameter ID 0.00-1.79mm o-ring standard tolerance is +/- 0.10

??The inner diameter ID 1.80-6.29mm o-ring standard tolerance is +/- 0.13

??The inner diameter ID 6.30-10.59mm o-ring standard tolerance is +/- 0.14

??The inner diameter ID 10.60-18.99mm o-ring standard tolerance is +/- 0.17

??The inner diameter ID 19.00-31.49mm o-ring standard tolerance is +/- 0.22

??2, O-ring national standard, O-ring specifications, rubber O-ring standard ID

??Wire CS 0.00-1.79 o-ring standard tolerance is +/- 0.07

??Wire CS 1.80-2.64 o-ring standard tolerance is +/- 0.08

??Wire CS 2.65-3.54 o-ring standard tolerance is +/- 0.09

??Wire CS 3.55-5.29 o-ring standard tolerance is +/- 0.10

??Wire CS 5.30-6.99 o-ring standard tolerance is +/- 0.13

??To sum up, I learned from a variety of standard rubber O-ring standard, encountered do not know when it will be able to quickly consult.Related Reading>>>Nitrile rubber Seals shaped pieces
