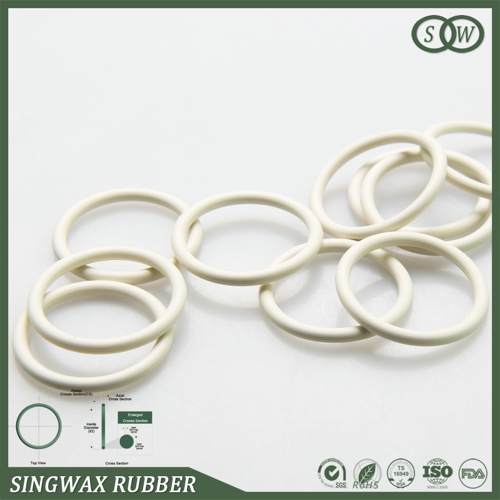

??Common o-ring model specifications

??o-ring model specifications Specification Description

??1 / general specifications expressed as: diameter d1 × diameter d2, such as: O-ring 25 * 2.2, where 25 denotes an O-ring inside diameter of 25 mm, a cross-sectional diameter of 2.2 represents O-ring is 2.2 mm;

??2 / complete specifications --- we have 3000 mold, including national standard and non-standard, the true sense did complete specifications.

??P2 / O-ring P3 / O-ring P4 / O-ring P5 / O-ring

??ID1.80 * 1.90 ID2.80 * 1.90 ID3.80 * 1.90 ID4.80 * 1.90

??P6 / O-ring P7 / O-ring P8 / O-ring P9 / O-ring

??ID5.80 * 1.90 ID6.80 * 1.90 ID7.80 * 1.90 ID8.80 * 1.90

??P10 / O-ring P10A / O-ring P11 / O-ring P11.2 / O-ring

??ID9.80 * 1.90 ID9.80 * 2.40 ID10.80 * 2.40 ID11.00 * 2.40

??P12 / O-ring P12.5 / O-ring P14 / O-ring P15 / O-ring

??ID11.80 * 2.40 ID12.30 * 2.40 ID13.80 * 2.40 ID14.80 * 2.40

??P16 / O-ring P18 / O-ring P20 / O-ring P21 / O-ring

??ID15.80 * 2.40 ID17.80 * 2.40 ID19.80 * 2.40 ID20.80 * 2.40

??P22 / O-ring P22A / O-ring P22.4 / O-ring P24 / O-ring

??ID21.80 * 2.40 ID21.70 * 3.50 ID22.10 * 3.50 ID23.70 * 3.50

??P25 / O-ring P25.5 / O-ring P26 / O-ring P28 / O-ring

??ID24.70 * 3.50 ID25.20 * 3.50 ID25.70 * 3.50 ID27.70 * 3.50

??P29 / O-ring P29.5 / O-ring P30 / O-ring P31 / O-ring

??ID28.70 * 3.50 ID29.20 * 3.50 ID29.70 * 3.50 ID30.70 * 3.50

??P31.5 / O-ring P32 / O-ring P34 / O-ring P35 / O-ring

??ID31.20 * 3.50 ID31.70 * 3.50 ID33.70 * 3.50 ID34.70 * 3.50

??P35.5 / O-ring P36 / O-ring P38 / O-ring P39 / O-ring

??ID35.20 * 3.50 ID35.70 * 3.50 ID37.70 * 3.50 ID38.70 * 3.50

??P40 / O-ring P41 / O-ring P42 / O-ring P44 / O-ring

??ID39.70 * 3.50 ID40.70 * 3.50 ID41.70 * 3.50 ID43.70 * 3.50

??P45 / O-ring P46 / O-ring P48 / O-ring P49 / O-ring

??ID44.70 * 3.50 ID45.70 * 3.50 ID47.70 * 3.50 ID48.70 * 3.50

??P50 / O-ring P48A / O-ring P50A / O-ring P52 / O-ring

??ID49.70 * 3.50 ID47.60 * 3.50 ID49.60 * 5.70 ID51.60 * 5.70

??P53 / O-ring P55 / O-ring P56 / O-ring P58 / O-ring

??ID52.60 * 5.70 ID54.60 * 5.70 ID55.60 * 5.70 ID57.60 * 5.70

??P60 / O-ring P62 / O-ring P63 / O-ring P65 / O-ring

??ID59.60 * 5.70 ID61.60 * 5.70 ID62.60 * 5.70 ID64.60 * 5.70

??P63 / O-ring P65 / O-ring P67 / O-ring P70 / O-ring

??ID62.60 * 5.70 ID64.60 * 5.70 ID66.60 * 5.70 ID69.60 * 5.70

??P71 / O-ring P75 / O-ring P80 / O-ring P85 / O-ring

??ID70.60 * 5.70 ID74.60 * 5.70 ID79.60 * 5.70 ID84.60 * 5.70

??P90 / O-ring P95 / O-ring P100 / O-ring P102 / O-ring

??ID89.60 * 5.70 ID94.60 * 5.70 ID99.60 * 5.70 ID101.60 * 5.70

??P105 / O-ring P110 / O-ring P112 / O-ring P115 / O-ring
